Noctua NV-FH2, 8 Channel Fan Hub for 5V, 12V, and 24V Fans, up to 60W Total with Optional 5.5mm Barrel Connector Power Supply (Black)
1 / 6
Noctua NV-FH2, 8 Channel Fan Hub for 5V, 12V, and 24V Fans, up to 60W Total with Optional 5.5mm Barrel Connector Power Supply (Black)
- Highly flexible premium grade 8-way PWM fan hub for 5V, 12V, and 24V based 3-pin and 4-pin fans (PWM control on 4-pin only), advanced protection against inrush currents, transients and overcurrent
- 4-pin input for power, PWM control (e.g. via optional NA-FC1 fan controller or PC motherboards) and RPM monitoring, 5.5/2.1mm (OD/ID) barrel input for power (e.g. via optional NV-PS1 115/230V PSU)
- Up to 60W total when powered via the 5.5mm barrel connector using optional power supplies (up to 24W using the Noctua NV-PS1), up to 22W when powered via the 4-pin input

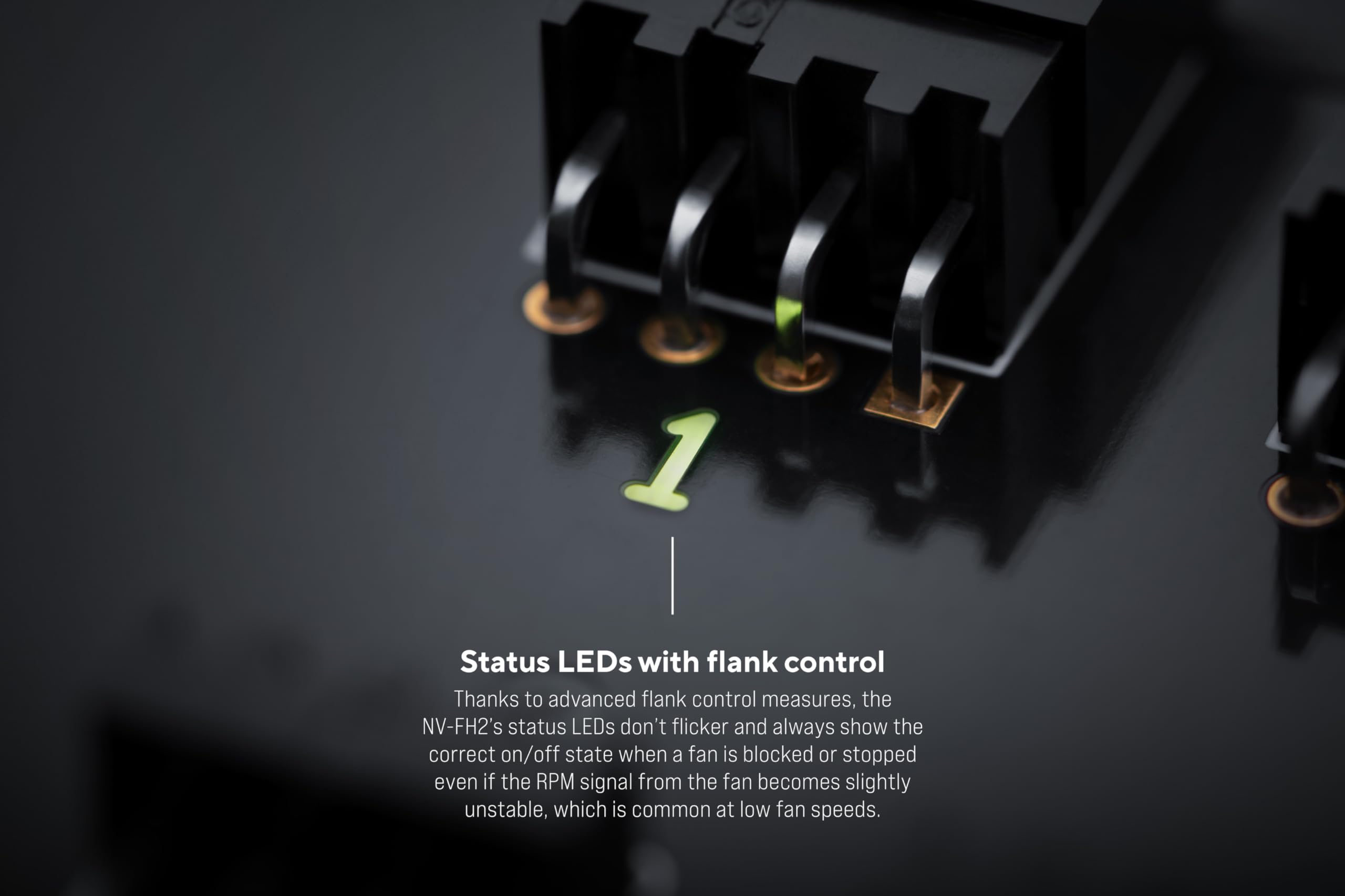

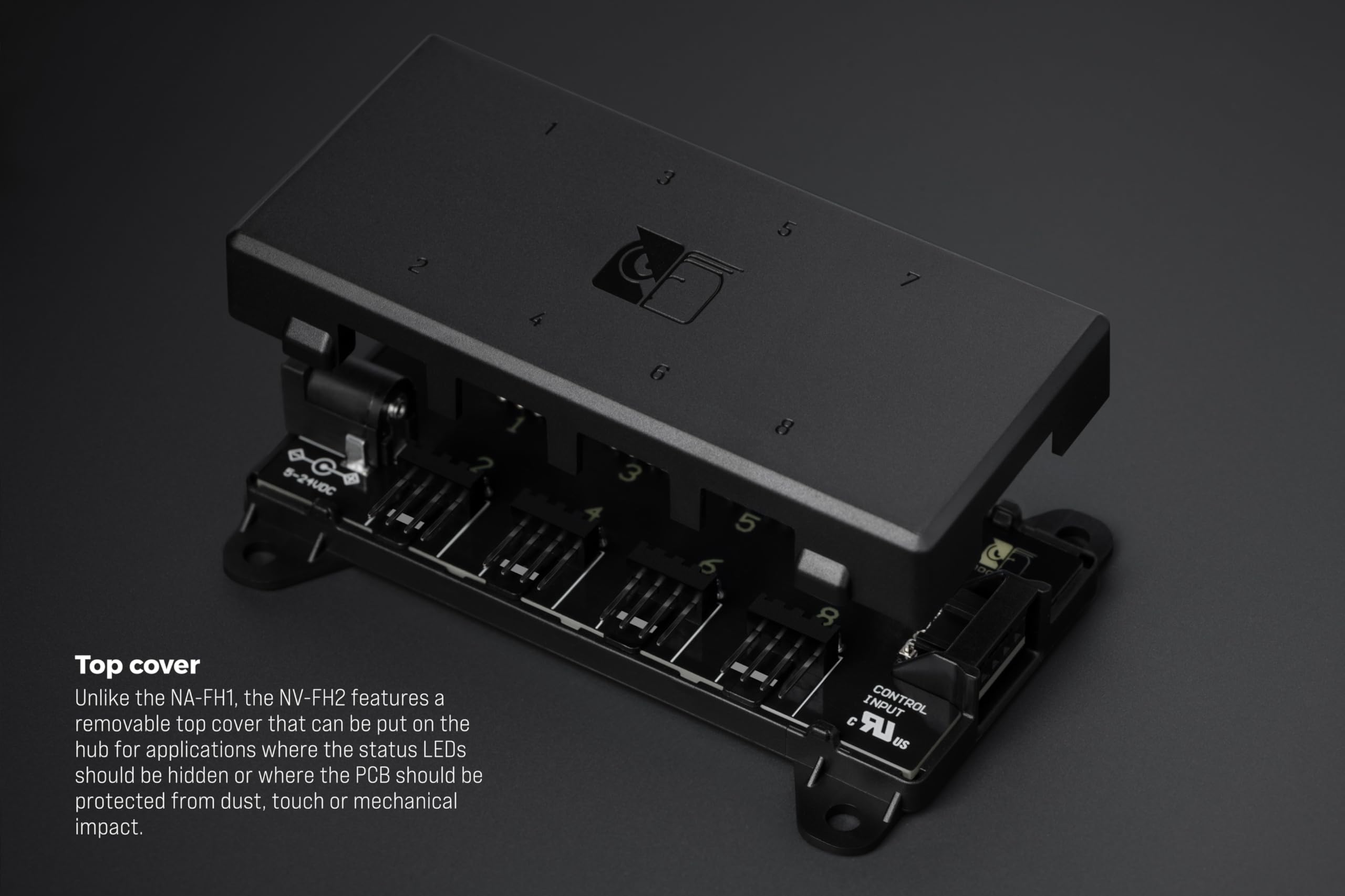

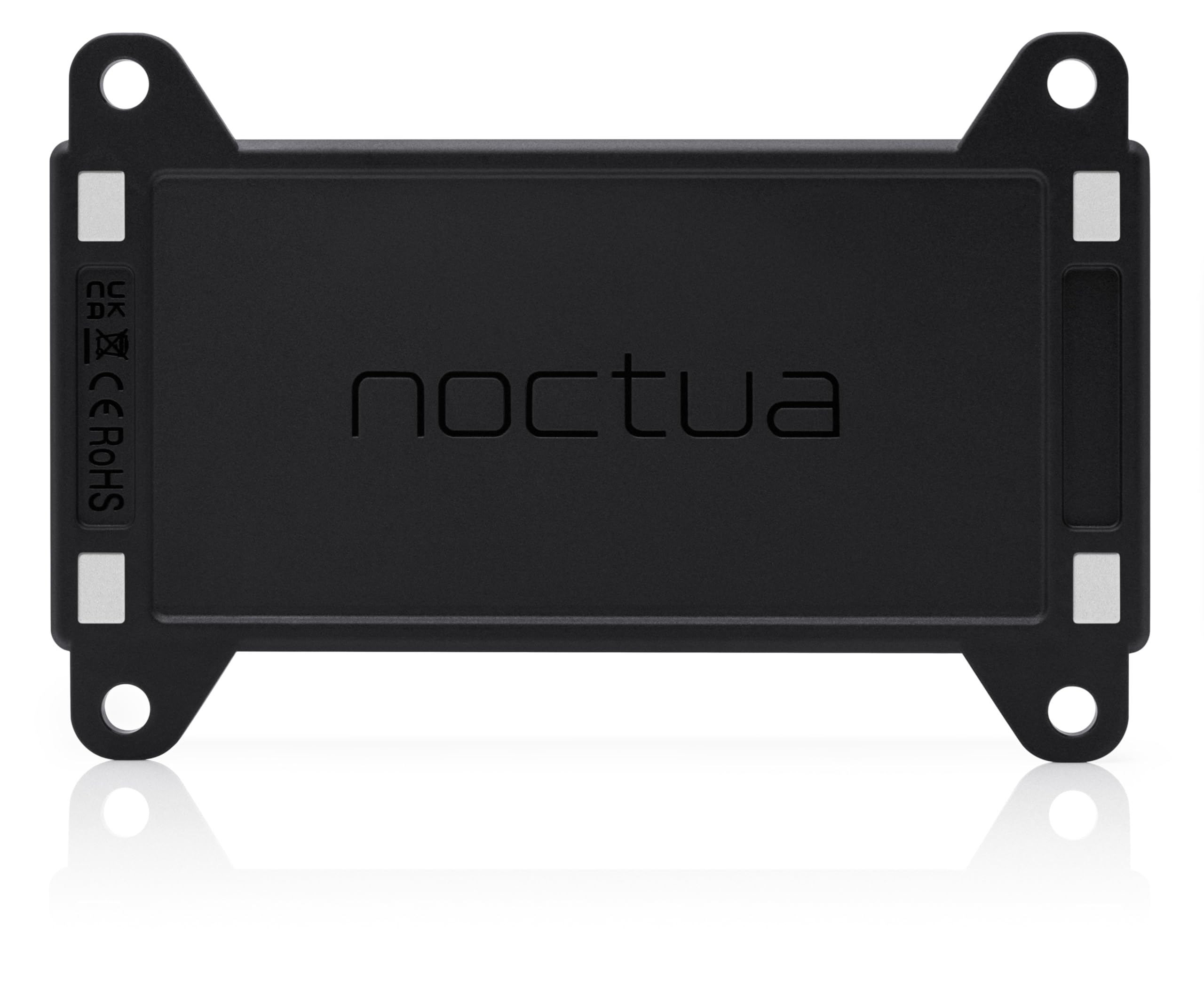

- Easy installation with magnetic fixture and screw-holes (4.1mm diameter), removable clip-on cover for applications where status LEDs should not be shown or extra protection against dust is required
- Full compliance with all applicable safety standards (EN 62368-1, EN 55035, EN 55032, UL-62368), CE, UKCA and UL certification, renowned Noctua quality backed up by a 6 year manufacturer’s warranty
$49.95
Noctua NV-FH2, 8 Channel Fan Hub for 5V, 12V, and 24V Fans, up to 60W Total with Optional 5.5mm Barrel Connector Power Supply (Black)—
$49.95
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Highly flexible premium grade 8-way PWM fan hub for 5V, 12V, and 24V based 3-pin and 4-pin fans (PWM control on 4-pin only), advanced protection against inrush currents, transients and overcurrent
- 4-pin input for power, PWM control (e.g. via optional NA-FC1 fan controller or PC motherboards) and RPM monitoring, 5.5/2.1mm (OD/ID) barrel input for power (e.g. via optional NV-PS1 115/230V PSU)
- Up to 60W total when powered via the 5.5mm barrel connector using optional power supplies (up to 24W using the Noctua NV-PS1), up to 22W when powered via the 4-pin input
- Easy installation with magnetic fixture and screw-holes (4.1mm diameter), removable clip-on cover for applications where status LEDs should not be shown or extra protection against dust is required
- Full compliance with all applicable safety standards (EN 62368-1, EN 55035, EN 55032, UL-62368), CE, UKCA and UL certification, renowned Noctua quality backed up by a 6 year manufacturer’s warranty
